Project description: Fiber Optics


SZ - Strander

BNB developed the Software:

  • For the Allen Bradley SLC 500 PLC
  • Visualization with Wonderware Intouch 7.x
  • Incl. serial communication to the CT-Drives

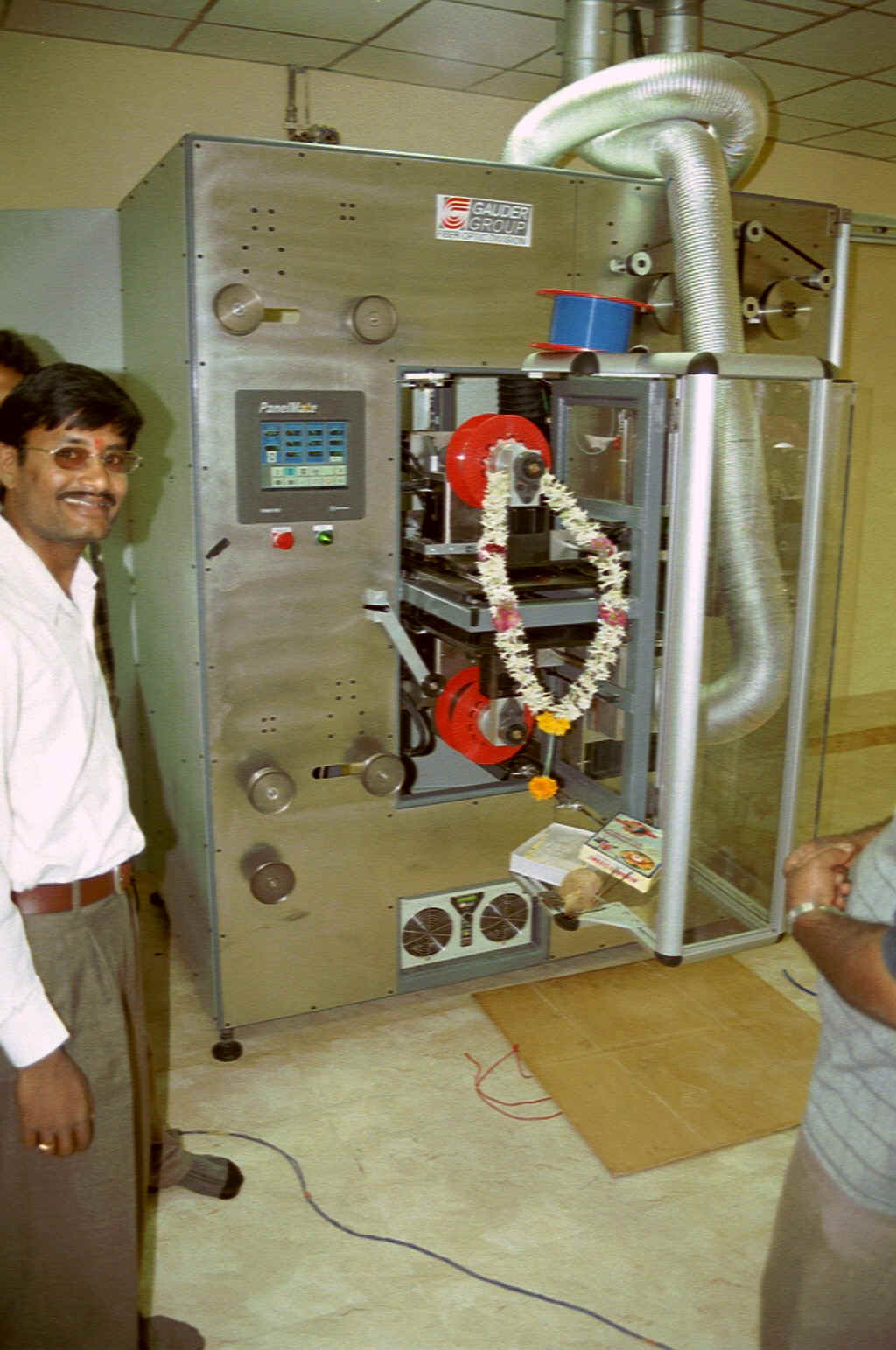

SZ Strading Unit

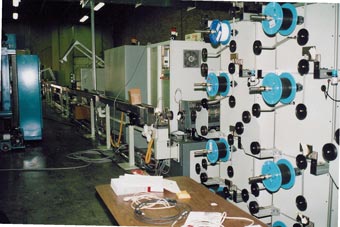

Ribbon Line

BNB developed the Software:

  • Intouch Visualization with Production Reporting and logging into database
  • Integrating of a barcode reader which was connected over the Ethernet Radio Network
  • Integration of a Gauge Measuring Head into Wondeware for Quality Control

Ribbon Line

Fiber Optical Coloring Line with Prooftester

BNB developed the Software:

  • Allen Bradley ControlLogix 5000 with 8 axis Servo Controller integrated into the PLC

Colorin Line

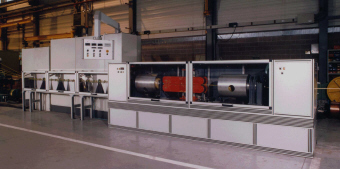

Extrusion Line (Second Coating Line)

BNB developed the Software:

  • For the misc. Allen Bradley PLC in the different subsystem
  • Wonderware Intouch Visualization
  • Allen Bradley using Profibus to communicate with drives and Measuring head for Quality Control

Second Coating Line
